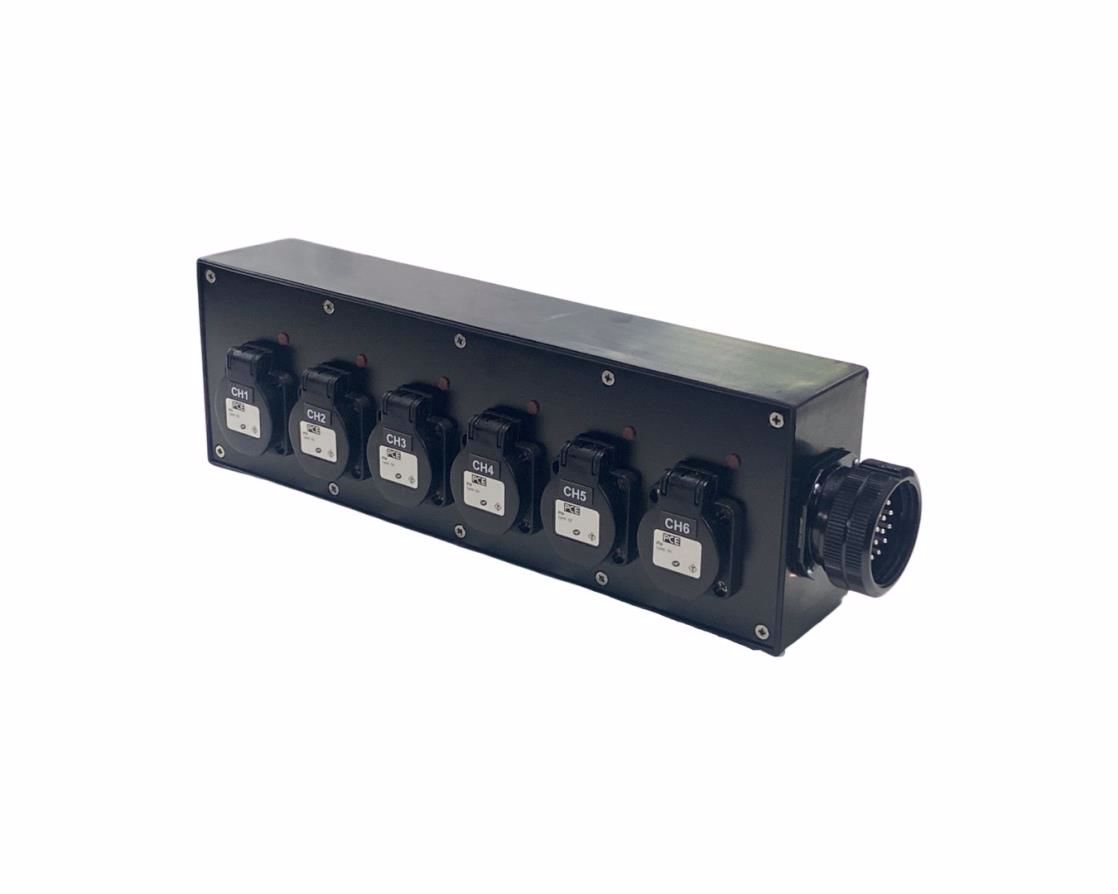

SYN-419-BREAK-OUT-BOX-I

Spider 419 Female to 6 SCHUKO Male

Standard wiring 1+2+13, 3+4+14, 5+6+15, 7+8+16, 9+10+17, 11+12+18

Male Spider, gold cont (+ring)

SYNTAX® SSX SPIDER 19 pin connector is an alternative version of the SSX 19 pin standard, designed for quick and easy managing of breakout applications. The Syntax proprietary 6-way rubber grommet, fitted in the cable gland terminal, guarantees optimal cable retention and IP67 watertight seal for outdoor use. For breakout assemblies with 6 cable leads, the usage of SYNTAX® MAINFLEX cable is recommended for full IP67 waterproof protection and best handling.

Fem Cab 419, M40, gold cont (-ring) reduced cable gland

The SYNTAX® SSX series, designed for professional applications and perfectly compatible with standard Socapex 419 series, is extremely robust being made of thick wall construction machined aluminium alloy, with a hard black anodized finish or black painted finish. The contacts insert is chloroprene rubber, which enables the use of removable contacts, either crimp or solder version. The unit is completely IP67 watertight when mated. Electrical safety and compliance is guaranteed by internal insulation of the shells, obtained through a safety insulating sleeve to prevent electric shock, as well as “first make last break” ground contacts. Grounding rings allow bussing of the ground contacts. Locking rings and backshells are designed for easy handling.

Male Cab 419,M40, gold cont (+ring) reduced cable gland

The SYNTAX® SSX series, designed for professional applications and perfectly compatible with standard Socapex 419 series, is extremely robust being made of thick wall construction machined aluminium alloy, with a hard black anodized finish or black painted finish. The contacts insert is chloroprene rubber, which enables the use of removable contacts, either crimp or solder version. The unit is completely IP67 watertight when mated. Electrical safety and compliance is guaranteed by internal insulation of the shells, obtained through a safety insulating sleeve to prevent electric shock, as well as “first make last break” ground contacts. Grounding rings allow bussing of the ground contacts. Locking rings and backshells are designed for easy handling.
